HEARTFELT® LINEAR WALLS

Structured and soft.
Bringing the pleasure of proven polyester felt to the ceiling plane, patented HeartFelt linear ceiling panels join crisp linearity with unexpected softness and texture. The felt ceiling material warms both the visual and acoustical experiences of a space.

Overview

General Information

Panel sizes:

Panel dimensions: 1 9/16" x 2 3/16" (40 mm x 55 mm)

Panel length: 8'

Key Features

  • Modular ceiling system with felt panels
  • Square-edge design
  • Three standard carrier modules to vary reveal for acoustics and aesthetics
  • Easy plenum access
  • Interior applications
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • GREENGUARD Gold Certified
  • Cradle to Cradle Certified™ Bronze
  • Red Dot Award 2017 Winner - Best of the Best

Physical Data

  • Substrate: Non-woven PES fibers (felt)
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  •  Fire rating: US - Class A Fire Rated per ASTM E84
    • Flame spread: < 25, Smoke < 300
  •  Fire rating: Canada - per CAN/ULC S102.2-10
    • Flame spread: = 5, Smoke = 90
  • Weight: Varies
  • Wind load: N/A
  • Recycled content: Up to 85%
  • Light reflectance: Varies with color selected

COLOURS

HeartFelt™ ceiling panels are available in white, black, five shades of grey, and five earth tones, offering opportunities to create visual gradients and rhythms at the ceiling plane. Coloration is inherent to the felted polyester material; the blend of colored and white fibers within each panel determines its shade. The material resists fading.

Given the unique and special nature of our HeartFelt ceiling product, steps should be taken (before and during installation, as well as over the lifetime of the ceiling) to avoid or minimize static and the accumulation of dust, lint, dirt or airborne particles on or around the felt. Hunter Douglas does not warrant against or take responsibility for any such static or accumulation. Contact us at 833-770-0700 for further details.

NOTE: Colours are for illustration purposes only.

HeartFelt - Greys

White
7593F

Off White
7595F

Light Grey
7596F

Middle Grey
7597F

Dark Grey
7598F

Anthracite
7599F

Black
7594F

HeartFelt - Earth Tones

Creme
7575F

Light Brown
7576F

Medium Brown
7577F

Dark Brown
7578F

Umber
7579F

PRODUCT DETAILS

Material characteristics

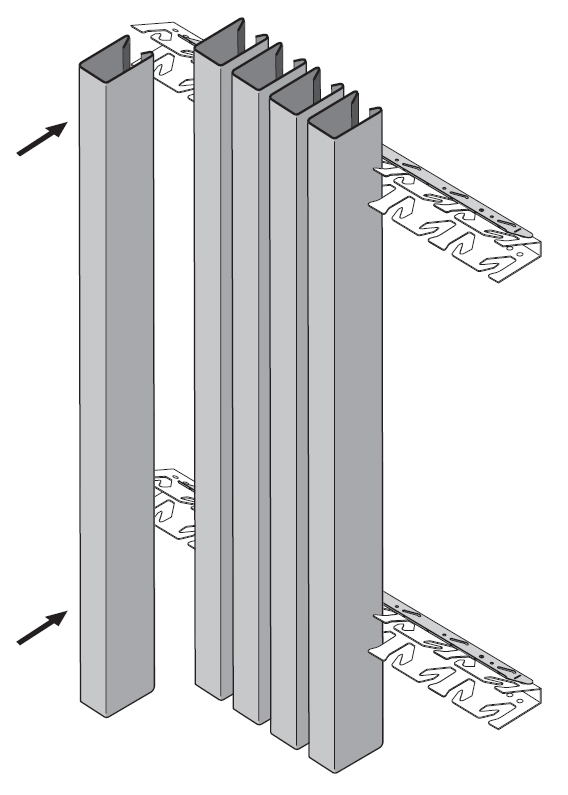

HeartFelt® is a linear wall system made of non-woven thermoformed PES fibres with open joints between the panels. The panels measure 40 mm in width and 55 mm in height, with a maximum length of 6000 mm. The following modules are available: 50 - 200 mm in increments of 10 mm.


VIDEO

ACOUSTICS

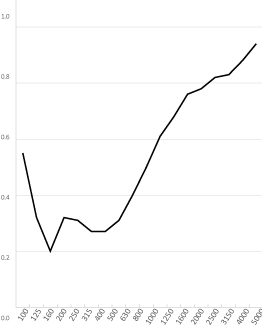

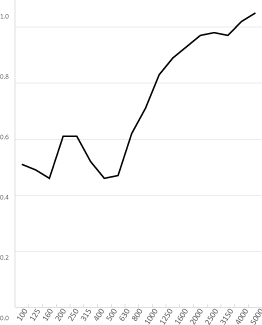

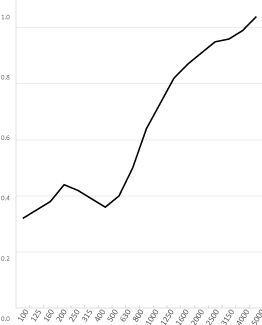

HeartFelt™ NRC Chart

HeartFelt™ is formulated to address higher frequency sound (speech, office noises).


HeartFelt™ NRC Chart HeartFelt™ NRC Chart HeartFelt™ NRC Chart
Linear panel on-center spacing: Linear panel on-center spacing: Linear panel on-center spacing:
50mm (1-15/16") = .70 NRC 60mm (2-3/8") = .60 NRC 80mm (3-1/8") = .50 NRC
Acoustical Tests performed in accordance with ASTM C423 and ASTM E795, in a type E400 mounting.

Test reports available upon request.

SUSTAINABILITY

Overview

Hunter Douglas utilizes metal, wood and fiberglass materials to design, engineer and manufacture ceiling systems that optimize interior environmental quality, material resources and energy usage. Hunter Douglas incorporates sustainable materials and employs sustainable practices in our manufacturing processes. When applied as part of an overall building plan for new and renovation construction, solutions from Hunter Douglas may contribute to LEED BD+C and ID+C certification for schools, retail, hospitality, healthcare and commercial interiors.

SmartBIM ecoScorecard

Our ecoScorecard LEED calculator helps customers search and evaluate the impact of Hunter Douglas' ceilings products against leading environmental rating systems. Using the most up-to-date data in the marketplace, ecoScorecard provides clear, concise product information as well as supporting documentation.

Indoor Environmental Quality

Hunter Douglas is committed to meeting the growing demand for healthier, more sustainable products. Meeting the rigorous and comprehensive standards for low emissions of VOC's, our Greenguard Gold Certified ceilings contribute to the overall indoor air quality and general health of a building space.
