Why Stretch Metal Tiles?
Luxalon® Stretch Metal tiles are ideal for solutions where either a high level of acoustic absorption is required or where visual and physical transparency of the ceiling is requested. The system is also ideal for solutions where regular access to the plenum is required.
Characteristics
Application
Stretch metal tiles are suitable for all building sectors including corporate, transport (airports, metro, bus & train stations), retail, leisure, public space, hospitality, healthcare, education and residential environments.
Please contact us to discuss your requirements.

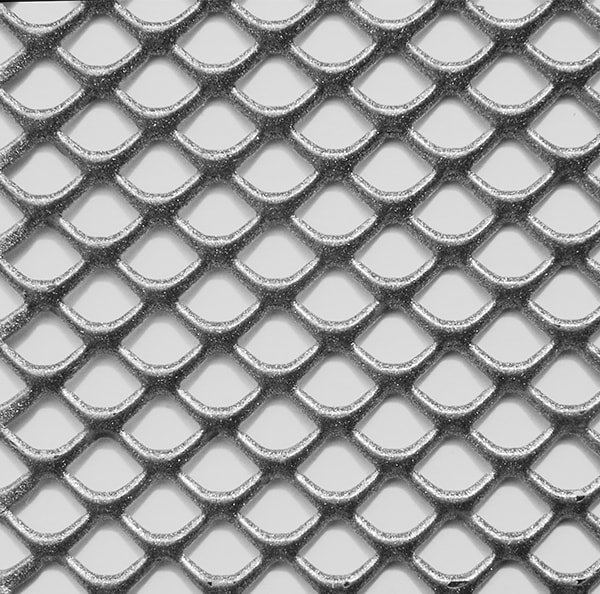

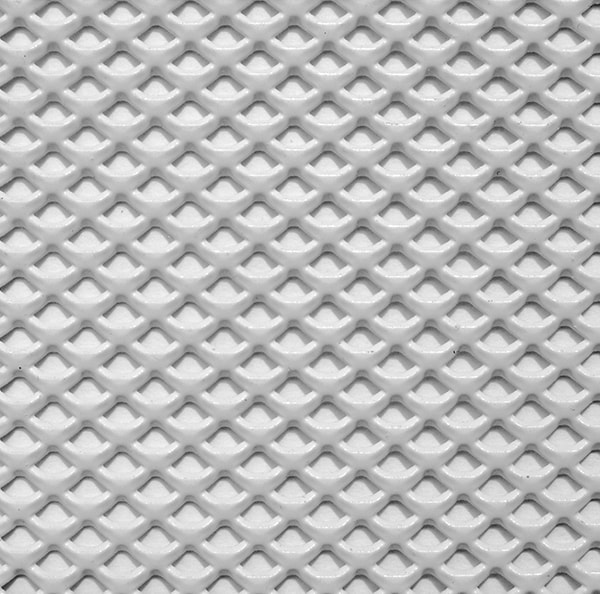

LD6 (FE)
Open area 40% Thickness 1.7 mm Dimensions : 6 x 3.5 - 1.1 x 0.8 Weight 1.6kg/m² Sample shown in full screen is larger than 100% |
|

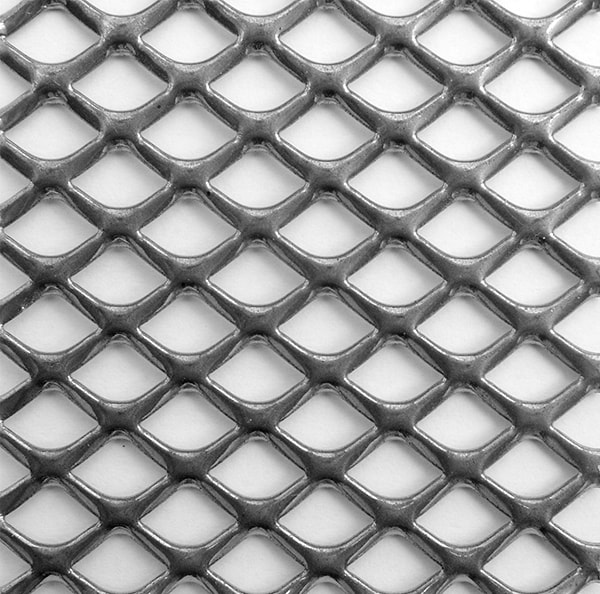

LS6 (FE)
Open area 36% Thickness 1.7 mm Dimensions : 6 x 4.5 - 1.2 x 1.0 Weight 1.3kg/m² Sample shown in full screen is larger than 100% |
|

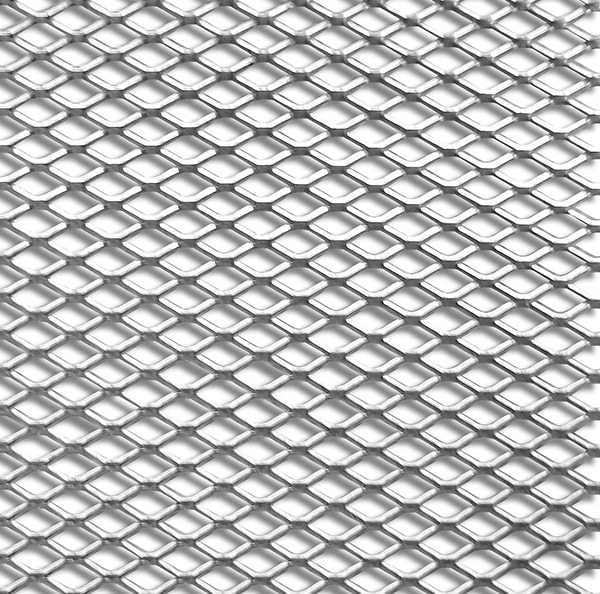

LS8 (FE + AI)
Open area 54% Thickness 1.9 mm Dimensions : 8 x 6.0 - 1.2 x 1.0 Weight 1.7kg/m² Sample shown in full screen is larger than 100% |
|

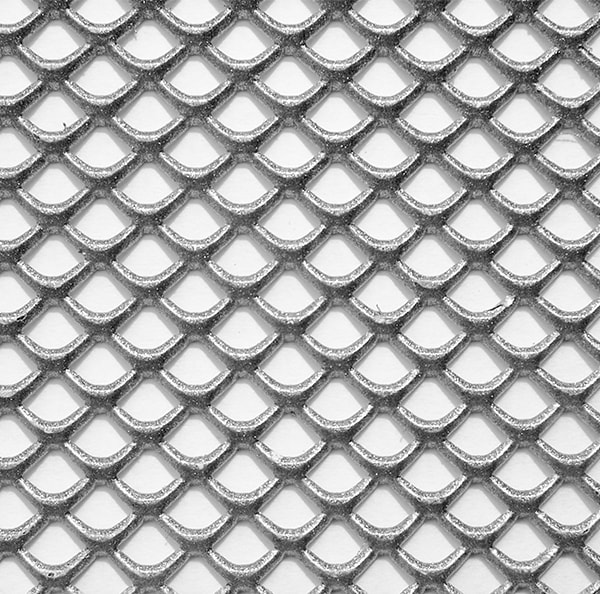

LS10 (FE + AI)
Open area 57% Thickness 2.0 mm Dimensions : 10 x 7.0 - 1.5 x 1.0 Weight 1.3kg/m² Sample shown in full screen is larger than 100% |
|

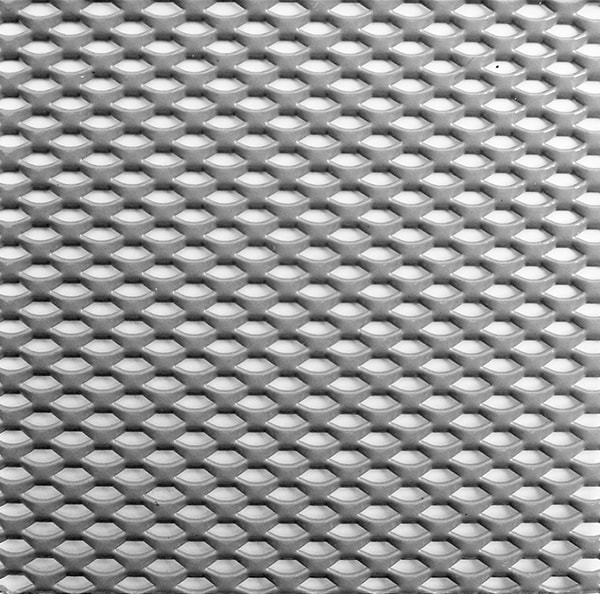

LS12 (FE + AI)
Open area 66% Thickness 2.0 mm Dimensions : 12 x 9.5 - 1.6 x 1.0 Weight 1.7kg/m² Sample shown in full screen is larger than 100% |
|

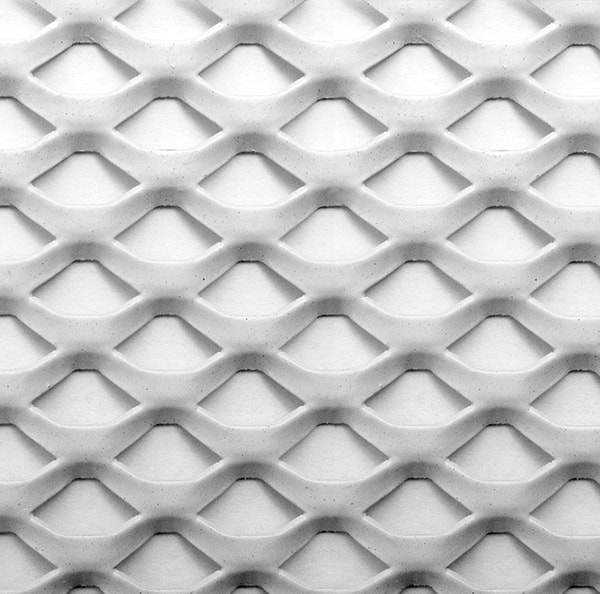

LS16 (FE)
Open area 46% Thickness 2.0 mm Dimensions : 16 x 11.0 - 3.0 x 2.0 Weight 2.0kg/m² Sample shown in full screen is larger than 100% |
|

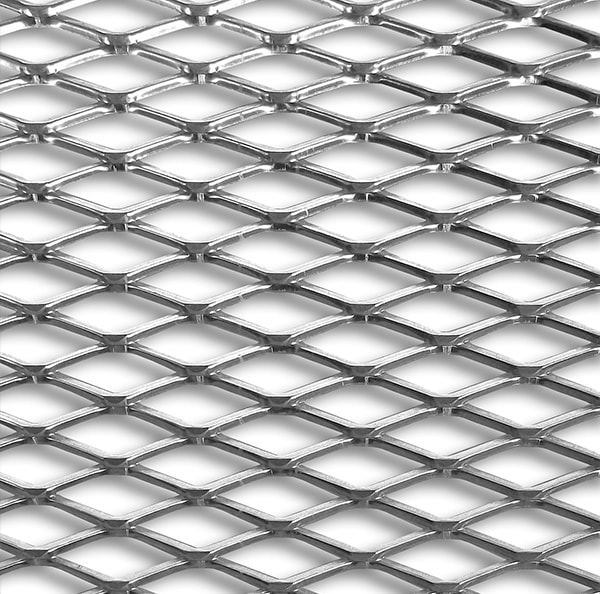

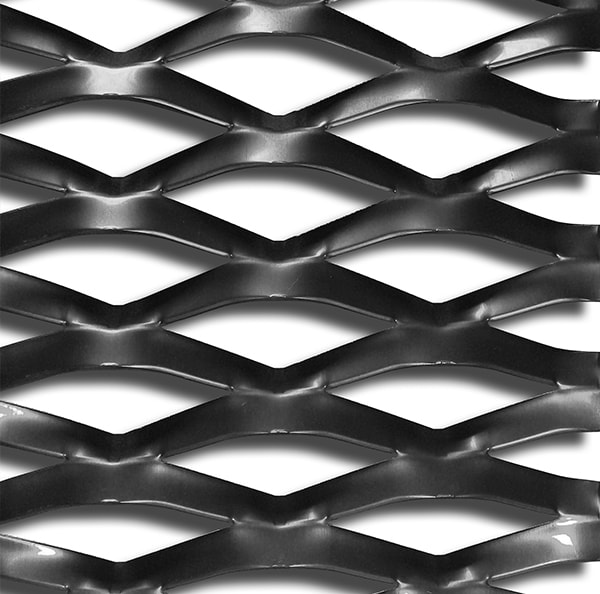

NEW YORK
Open area 40% Thickness 2.0 mm Dimensions: 85 x 35- 11 x 2 Weight (Alu) 2.6/3.4 kg/m² Weight (FE) 7.6/10.2 kg/m² Sample shown in full screen is larger than 100% |
|

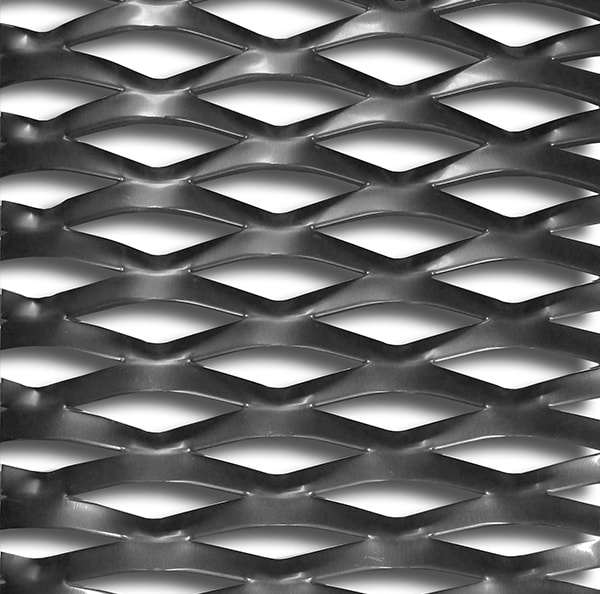

DUBAI
Open area 36% Thickness 1.5 mm Dimensions: 62 x 23 - 8 x 1.5 Weight (Alu) 2.7/3.6 kg/m² Weight (FE) 8.2/11.2 kg/m² Sample shown in full screen is larger than 100% |
|
LD6 (FE)
Open area 55% Thickness 1.5 mm Dimensions: 28 x 10 - 2 x 1.5 Weight (Alu) 1.7/2.4 kg/m² Weight (FE) 4.2/6.4 kg/m² Sample shown in full screen is larger than 100% |
|
LD6 (FE)
Open area 50% Thickness 2.4 mm Dimensions: 20 x 10 - 2.5 x 1.0 Weight (Alu) 2.4 kg/m² Weight (FE) 5.4 kg/m² Sample shown in full screen is larger than 100% |
NAME | |||
CAD, 2D, SM Plank Gamma Lay-on DWG | |||
CAD, 2D, SM Plank Gamma Lay-on PDF | |||
CAD, 2D, SM Plank Beta Hook-on Singular-Folded DWG | |||
CAD, 2D, SM Plank Beta Hook-on Singular-Folded PDF | |||
CAD, 2D, SM Plank Beta Hook-on Singular Special DWG | |||
CAD, 2D, SM Plank Beta Hook-on Singular Special PDF | |||
CAD, 2D, SM Plank Beta Hook-on Safetyloop Special DWG | |||
CAD, 2D, SM Plank Beta Hook-on Safetyloop Special PDF | |||
CAD, 2D, SM Plank Beta Hook-on Safetyloop Folded DWG | |||
CAD, 2D, SM Plank Beta Hook-on Safetyloop Folded PDF | |||
CAD, 2D, SM Tile Lay-on T24 DWG | |||
CAD, 2D, SM Tile Lay-on T24 PDF | |||
CAD, 2D, SM Plank Alpha Bandraster DWG | |||
CAD, 2D, SM Plank Alpha Bandraster PDF | |||
CAD, 2D, SM Tile Lay-on T15 DWG | |||
CAD, 2D, SM Tile Lay-on T15 PDF | |||
CAD, 2D, SM Tile Lay-in T24/8 DWG | |||
CAD, 2D, SM Tile Lay-in T24/8 PDF | |||
CAD, 2D, SM Tile Lay-in T24/0 DWG | |||
CAD, 2D, SM Tile Lay-in T24/0 PDF | |||
CAD, 2D, SM Tile Lay-in T15/8 DWG | |||
CAD, 2D, SM Tile Lay-in T15/8 PDF | |||
