Why Planks?
Metal planks are ideal for projects where either a high level of acoustic absorption is required or where visual quality of the ceiling is requested. The systems are also ideal for environments where regular access into the plenum is require
Characteristics
Application
Metal planks are suitable for all building sectors including corporate, transport (airports, metro, bus & train stations) retail, leisure, public space, hospitality, healthcare, education and residential.
Please contact us to discuss your requirements.

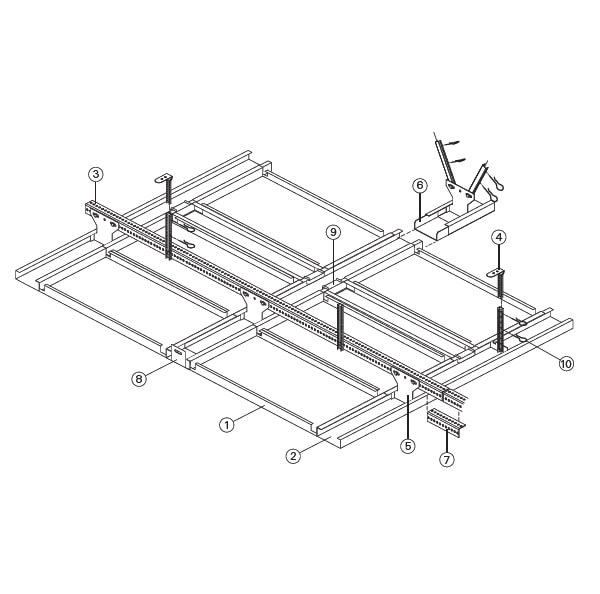

ALPHA (BANDRASTER)
Alpha parallel and Alpha cross planks are specifically conceived and designed to deliver infinite possibilities in terms of style and combinations. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = C-Grid panel 2 = C-Grid profile 3 = Primary profile 4 = Nonius hanger 5 = C-Grid suspension shoe 6 = C-Grid profile splice 7 = Primary profile splice 8 = Wall bracket 9 = Cross connector 10 = Locking clips |
|

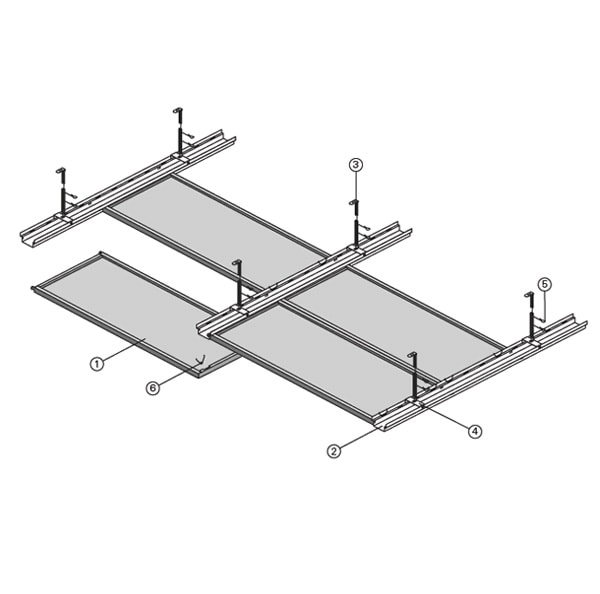

ALPHA SD1 (BANDRASTER SWING-DOWN)
Alpha Swing-Down 1 metal ceiling systems swing down laterally and offer simple and customisable ceiling solutions. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = Alpha SD plank 2 = Torsion-Spring profile 3 = Nonius hanger 4 = Suspension bracket 5 = Locking clips 6 = Torsion-Spring |
|
ALPHA SD2 (BANDRASTER SWING-DOWN)
Alpha Swing-Down 2 metal ceiling systems swings and slides away to create large service openings for your convenience. PANEL SIZES
- minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit)
TYPICAL ISOMETRICS 1 = Alpha SD plank 2 = C-Grid profile
3 = Primary profile
4 = Nonius hanger
5 = C-Grid suspension shoe
6 = Primary profile splice 7 = Locking clips |
|

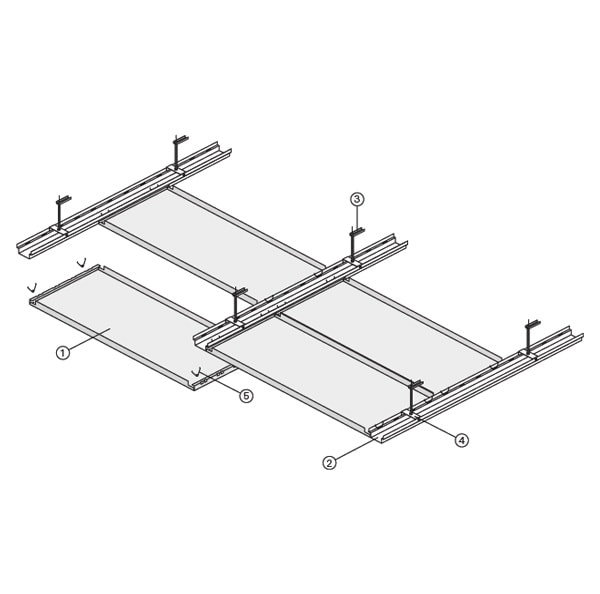

ALPHA SD3 (BANDRASTER SWING-DOWN)
Alpha parallel and Alpha cross are specifically conceived and designed to deliver infinite possibilities in terms of style and combinations. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = Alpha SD plank 2 = Torsion-Spring profile 3 = Suspension element 4 = Suspension bracket 5 = Torsion-Spring |
|

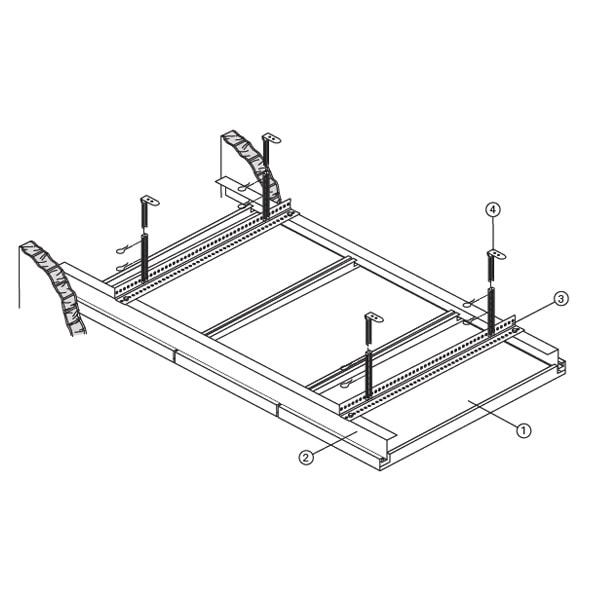

BETA A (HOOK-ON CONTINUOUS)
Beta Hook-On Singular metal ceiling systems are best for corridors or individual patterned ceiling solutions. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = Hook-On plank 2 = Hook-On profile 3 = Primary profile 4 = Suspension |
|

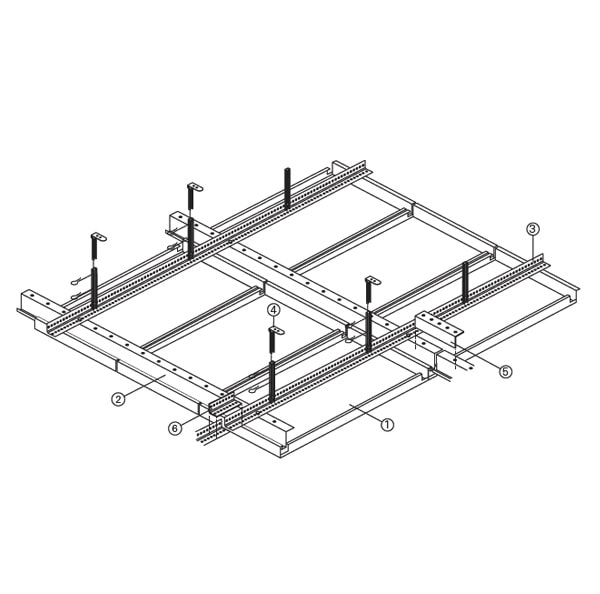

BETA B (HOOK-ON CONTINUOUS)
Beta Hook-On Singular metal ceiling systems are best for corridors or individual patterned ceiling solutions. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = Hook-On plank 2 = Hook-On profile 3 = Primary profile 4 = Suspension 5 = Hook-On profile splice 6 = Primary profile splice |
|

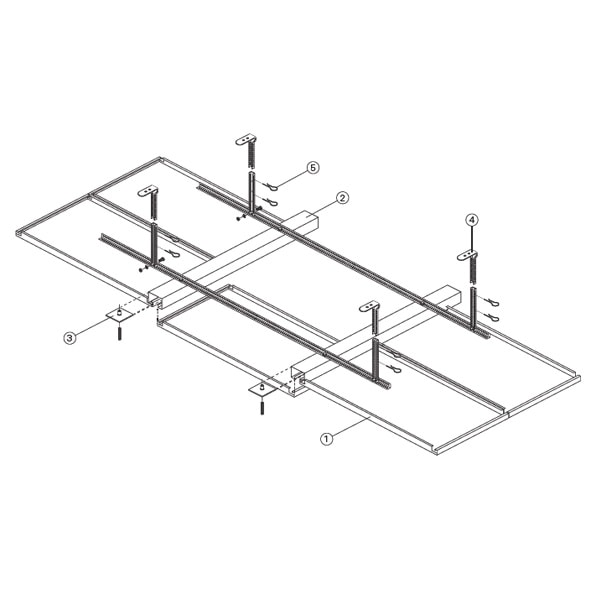

BETA (SAFETY-LOOP)
Beta Hook-On Safety-Loop when secure panels are important. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = Hook-On plank 2 = Safety-Loop profile 3 = Locking plate with screw 4 = Nonius hanger 5 = Suspension element |
|

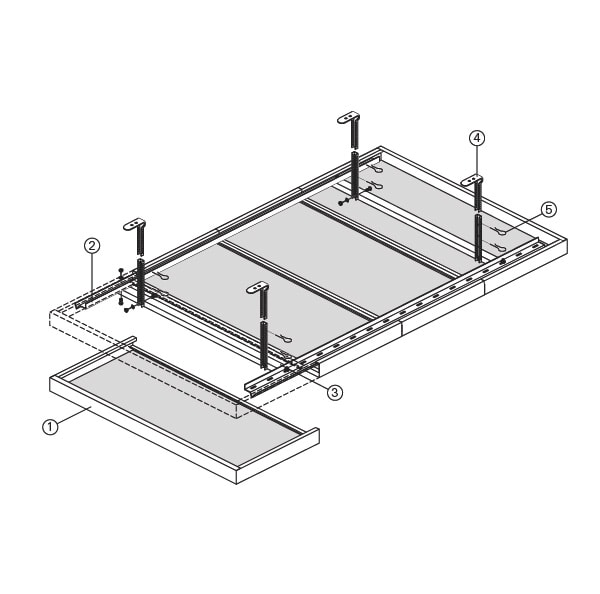

BETA (ISOLA)
Use Beta Isola planks to create individually sized islands where design features or acoustics are a priority. PANEL SIZES - minimum 300 x 520 mm - maximum 600 x 2000 mm* (*Other dimensions on request)
TYPICAL ISOMETRICS 1 = Beta Isola plank 2 = Hook-On profile 3 = Primary profile 4 = Suspension 5 = Locking clips |
|

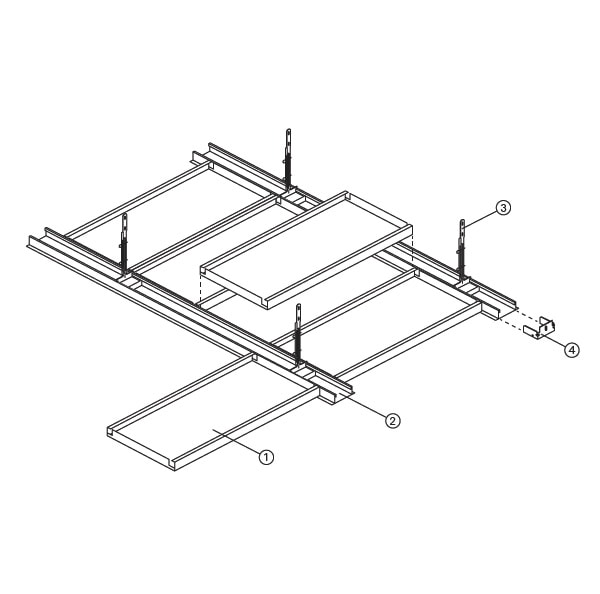

GAMMA (LAY-ON PLANKS)
Gamma Lay-On metal ceilings are offered in a wide range of sizes, with square edge details for standard grid options. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit)
TYPICAL ISOMETRICS 1 = Lay-On Plank 2 = Bandraster profile (non HD) 3 = Suspension (non HD) 4 = Wall bracket (non HD) |
|

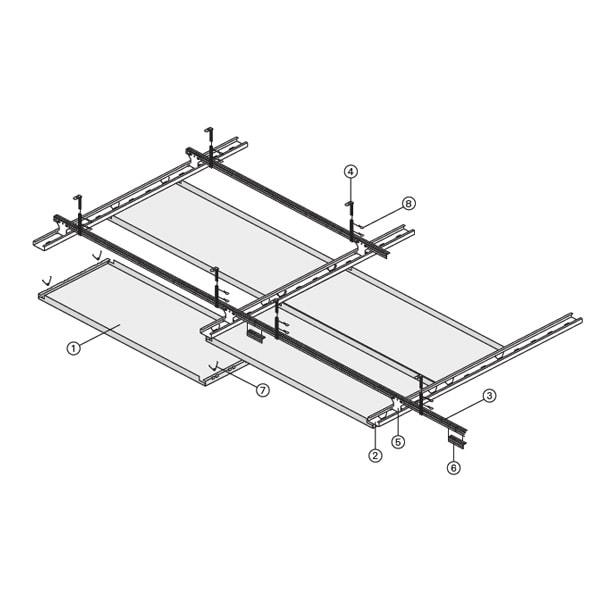

DELTA B (TORSION-SPRING CONTINUOUS)
Alpha parallel and Alpha cross are specifically conceived and designed to deliver infinite possibilities in terms of style and combinations. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm* (For large dimensions contact our sales unit) TYPICAL ISOMETRICS 1 = Delta B plank 2 = C-Grid profile 3 = Primary profile 4 = Nonius hanger 5 = C-Grid suspension shoe 6 = Primary profile splice 7 = Torsion-Spring 8 = Locking clips |
|

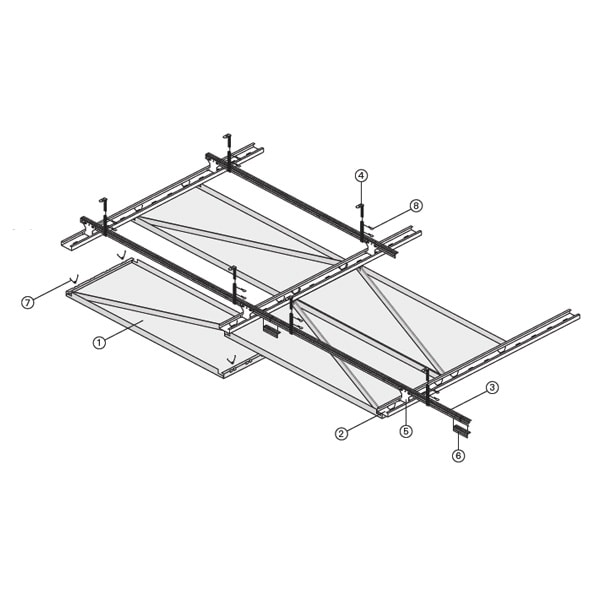

DELTA G (GEOMETRIES)
Delta Torsion-Spring Geometries planks use geometrical panel shapes to create drama in the ceiling plane with a system that allows panels to swing down for plenum access. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm TYPICAL ISOMETRICS 1 = Delta G plank 2 = C-Grid profile 3 = Primary profile 4 = Nonius hanger 5 = C-Grid suspension shoe 6 = Primary profile splice 7 = Torsion-Spring 8 = Locking clis |
|
DELTA S (SEGMENTED)
Delta Torsion-Spring Segmented ceiling planks system is a popular alternative to curved panels, segmenting allows the use of downward accessible flat panels in a curved ceiling. PANEL SIZES - minimum 300 x 520 mm - maximum 1050 x 2400 mm TYPICAL ISOMETRICS 1 = Delta S plank 2 = Curved profile 3 = Torsion-Spring 4 = Nonius hanger 5 = Locking clips |
NAME | |||
Installation Instructions Planks ALPHA C Grid Bandraster | |||
Installation Instructions Planks BETA A Hook on | |||
Installation Instructions Planks BETA Safety loop interior | |||
Installation Instructions Planks BETA B Hook on | |||
Installation Instructions Planks GAMMA Lay on | |||
Installation Instructions Planks Beta Isola | |||
