Solid Wood Linear

The linear solid wood ceiling system is a wood solution in it's most natural form. A wide range of wood species are available, all with their own characteristics. Various panel widths can be combined creating a unique look. The system is easy to install and allows the ceiling to be demountable and have access to the plenum.

Overview

General Information

Why Solid Wood Linear?

When using Solid Wood Linear systems you are creating an environmentally friendly and durable building with an authentic feel. Wood is a natural product that is alive, it breaths and with its own characteristics is suitable for wide range of design solutions. Also, wood is the only building material that is 100% CO2 neutral, and is totally recyclable.

The advantage of the system is that it is a made-to-measure solution, meaning no cutting adjustments are required at site, significantly reducing the installation time and cost. Any design is possible as the panel and gap size is fully customizable.

Characteristics

  • A made-to-measure solution, minimizing installation time and site adjustments
  • Projects are technically supported and developed, providing a perfect fit at site
  • Acoustic performance up to alpha w 0.70 (without optional rock wool)
  • Reaction to fire classification B-s2,d0 according to EN 13501-1 (higher classification upon request)
  • An all-natural and sustainable wooden ceiling or wall solution with FSC/PEFC certification
  • Curved solutions possible by using a special carrier or CNC cutting

Application

The Solid Wood Linear ceilings and walls are suitable for all building sectors: Corporate, Transport (airports, metro-, bus -, train stations), Retail, Leisure, Public spaces, Hospitality, Healthcare, Education or Residential.



WOOD SPECIES & FINISHES

Our range of wood exceeds 20 different species, with their own unique characteristics. The wooden slats may have a planed, fine-sawn and rough-sawn surface finish. The wooden panels are finished as standard with high-quality varnish to protect the wood against moisture, dust and dirt. Other wood species area available upon request.

Wood

Yellow Poplar

Ayous

Yellow Pine

European Pine

Accoya

Siberian Larch

American White Oak

American Ash

European Oak

American Red Oak

Cherry

Oregon Pine

Jatoba

Teak

Cambara

Merbau

Mahogany

Western Red Cedar

American Walnut

Wenge

Bamboo

Bamboo SP Natural

Bamboo SP Caramel



Finishes

Alongside the standard transparent varnish, there is also a wide range of stains and colours available. This finish can add a nice touch to the wood.

PRODUCT DETAILS


System Characteristics

A perfect fit at site is guaranteed, as the panels are made-to-measure. This avoids any cutting at site, reducing the installation costs and maintaining the beautiful details of the wooden panels. The Solid Wood Linear ceiling and wall system are developed in such a way to maximize the efficiency and minimize installation costs. The specially developed suspension system consists of pre-fixed clips, which are easily put together in the carriers. Light fixtures, vents or speakers can be easily fixed into the ceiling.


Ceiling Solution

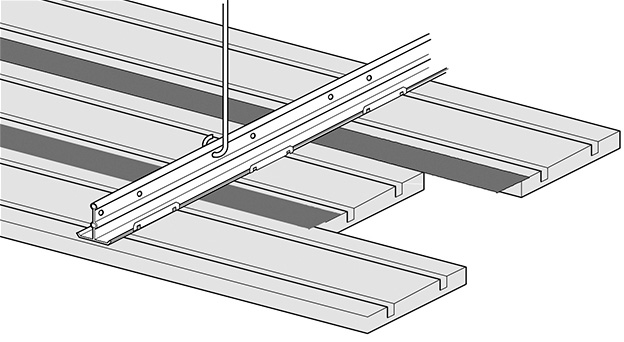

The Solid Wood Linear ceiling system consists of solid wooden panels with pre-fixed clips, which allows them to be easily fixed onto the carrier. The wooden panels are supplied in various or fixed lengths and are connected with a tongue and groove connection to create a seamless joint.

- Three demountable solutions; Linear Open, Closed & Multi-panel
- Quick installation with pre-assembled clips
- Curved and undulating shapes possible
- Panel widths from 75mm up to 180mm
- Combine various panel widths with the Multi-panel system


Wall Solution

The Solid Wood Linear wall system is developed to create a natural, made-to-measure wall solution. The aluminium SLR profile, together with the pre-assembled clips guarantee easy installation in a horizontal or vertical direction.

- Take the ceiling to the wall, in a horizontal or vertical direction
- Combine various panel widths into one system
- Quick installation with pre-assembled clips
- Curved wall solutions also possible


Size

A selection of common used sizes are shown below, however other sizes are available upon request.

Solid Wood Linear A - B
  12 - 63 19 - 70 19 - 92
  15 - 68 19 - 82 15 - 110
  15 - 70 13 - 92 19 - 116



More product details

More detailed information can be found at the downloads section below. Here you can find information about Technical drawings and specifications, Maximum spans, Dimension & weights, Material requirements per M2.

PERFORMANCE

Performance

On the backside of the panels a non woven acoustic fleece is placed to increase the acoustic performance of the ceiling.

The acoustic comfort in an office space, school or public building contributes to our well-being as good acoustic comfort can positively affect health, communication, safety, productivity and learning. Using Hunter Douglas high performance acoustical ceiling products are the best solution to deliver outstanding acoustic performance, comfort and an aesthetic pleasing solution. With the Solid Wood Linear system absorption Alpha w values between 0.55 and 0.85 can be obtained, depending on panel and joint widths.

CAD

NAME
DOWNLOAD
Interior Wood Linear Closed 2D

Interior Wood Linear Closed 3D

Interior Wood Linear Open 2D

Interior Wood Linear Open 3D

NAME
DOWNLOAD
Interior Wood Linear Closed 2D

Interior Wood Linear Closed 3D

Interior Wood Linear Open 2D

Interior Wood Linear Open 3D

SUSTAINABILITY

Health and wellbeing

Hunter Douglas contributes to sustainable buildings through aesthetic solutions that enhance comfort and save energy. Promoting health and wellbeing of their occupants is arguably the most important function of buildings. Buildings are not constructed just to be energy efficient. Our shading solutions promote the use of healthy daylight without the hindrances of glare and thermal discomfort. Our acoustic ceilings are a key element in the provision of acoustic comfort.

Sound materials

Environmentally sound materials are key to sustainable buildings. Our strategy is to pick materials that have good environmental properties to start with. Many of our products are made of aluminum produced in our own smelters. We’ve optimized our processes to use up to 99% of recycled content to produce the right alloy for our products. Our wood is FSC certified and we embrace the Cradle to Cradle principle in our product development.

Energy savings

Reducing the energy use of the total building stock is key to the prevention of global warming. Most modern office buildings use more energy for cooling than heating. Effectively managing the solar energy that passes through the transparent part of the façade is a key strategy in the prevention of overheating in both old and new buildings. Our high performance shading solutions bring substantial energy savings, while at the same time promoting health and wellbeing.

Corporate Social Responsibility

Keen on Green is an important company-wide initiative to reduce energy consumption, water usage and our overall carbon-footprint. We embrace the ISO 14001 framework to actively manage our Keen on Green objectives. Hunter Douglas and its employees actively support the communities in which we live and work, as well as those on a more global scale. Business is people. We pride ourselves on our worldwide network of experienced, intelligent, passionate and creative people that have consciously chosen Hunter Douglas as their employer.

DOWNLOADS

NAME
DOWNLOAD
Brochure Wood Linear UK

Brochure Wood Linear

Inspiration Book Wood Ceilings

Commercial Ceilings & Walls Product Guide

NAME
DOWNLOAD
Technical Specifications Wood Linear

NAME
DOWNLOAD
Installation Instructions Wood Linear
